UPS Legrand Keor PDU monofazat, 800VA/480W, IN 1xIEC 10A OUT 8x Schuko, technologie off-line, conexiune USB HID, capacitate baterie 12V/9AH, 230V, dimensiuni 440x150x88mm, greutate 5kg
RON 871.66
(VAT included)
RON 720.38
(VAT excluded)
Costurile de livrare vor apărea in cos
Repayment of installments: fast and easy
RON 28.85
Monthly payment
Installment calculator
Description

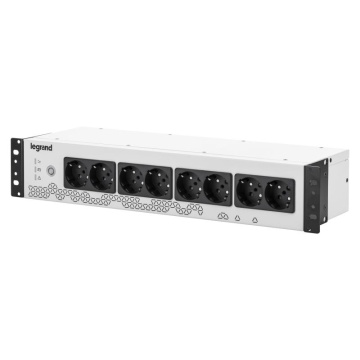

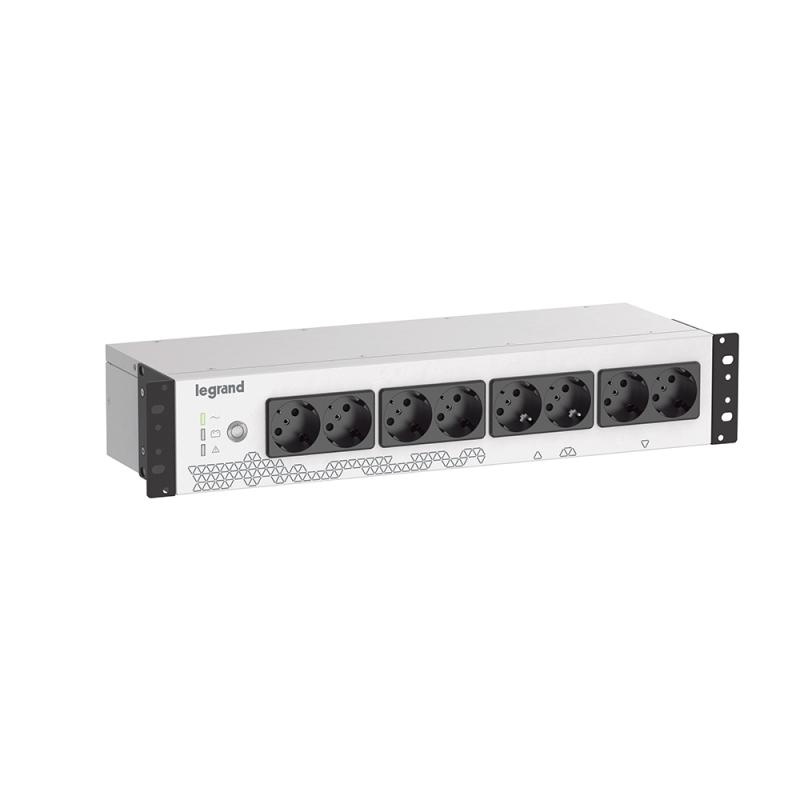

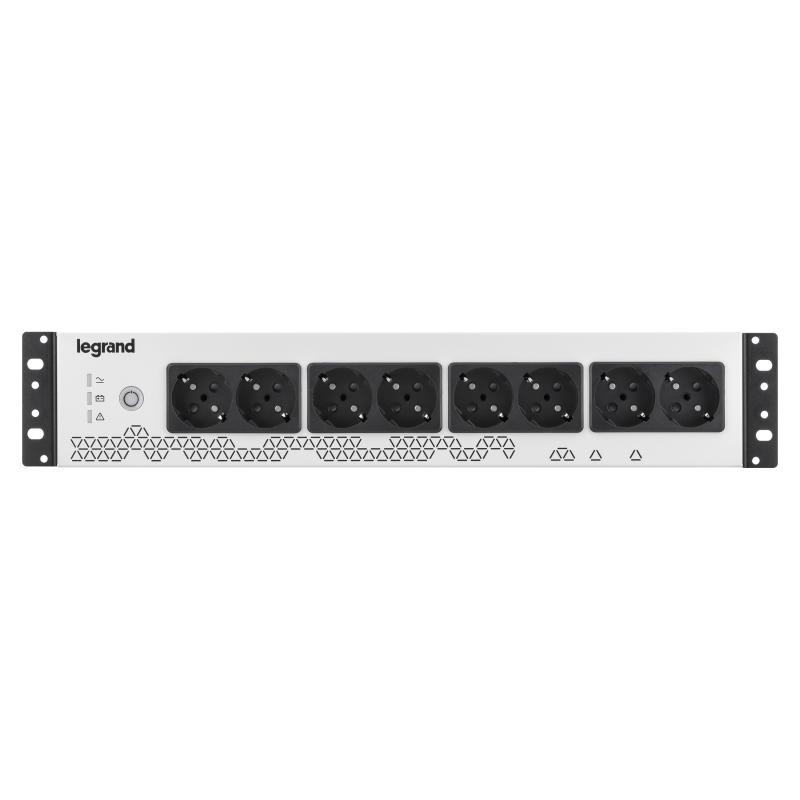

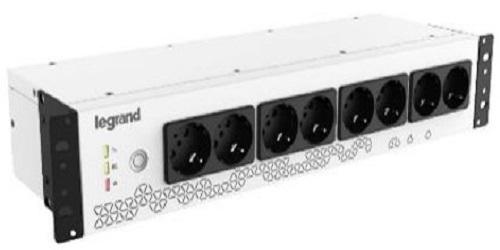

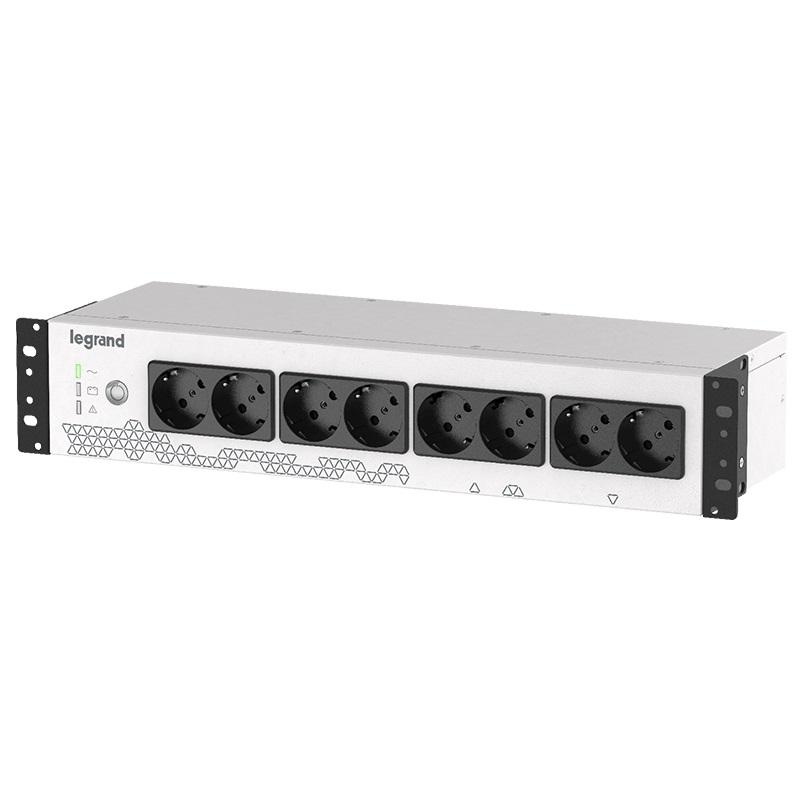

Keor PDU is a new UPS specifically designed for installation in 19-inch panels and racks.
Its PDU style design with ultra compact dimensions provides 8 sockets with up to 15 minute autonomy in just 2 rack units.
Details
SKU
000000000000310332
Categories
Brand
Sustainability compliance
Yes
Compliance certificates
CE
Power source type
AC
Operating temperature (T-T)
0 - 40 C
LED indicators
Yes
Package height
440 mm
Depth
150 mm
Operating relative humidity (H-H)
0 - 95%
Pallet net width
120 cm
Height
440 mm
Number of batteries supported
1
Product colour
Black, White
Master (outer) case height
255 mm
Products per master (outer) case
1 pc(s)
Weight
5.5 kg
Products per pallet
48 pc(s)
Width
88 mm
Battery technology
Sealed Lead Acid (VRLA)
Waveform
Sine
Output frequency
50/60 Hz
AC outlet types
C13 coupler
Form factor
Rackmount
Rack capacity
2U
Number of input phases
1
Number of output phases
1
Power plug
C14 coupler
USB port type
USB Type-B
Output operation voltage (min)
207 V
Output operation voltage (max)
253 V
Efficiency
98%
Output power factor
0.6
UPS topology
Standby (Offline)
Harmonized System (HS) code
85078000
Output power
480 W
Input operation voltage (max)
290 V
Noise level
40 dB
Potential-free output
No
Auto shut-off
No
Pallet net length
100 cm
Output voltage regulation
10%
Input frequency
45/65 Hz
Input operation voltage (min)
160 V
Battery capacity
9 Ah
Output power capacity
0.8 kVA
Number of type F outputs
8
Certification
EN 62040-1, EN 62040-2
Output frequency regulation
1 Hz
Typical backup time at half load
10 min
Maximum current
10 A
Power protection features
Overdischarge, Overload, Short circuit
Master (outer) case width
159 mm
Master (outer) case length
528 mm
Pallet net height
102 cm
Pallet net weight
306.6 kg
Master (outer) case gross weight
6.39 kg
Package weight
6.07 kg
Package width
88 mm
Package depth
5.81 mm
AC outlets quantity
16 AC outlet(s)
