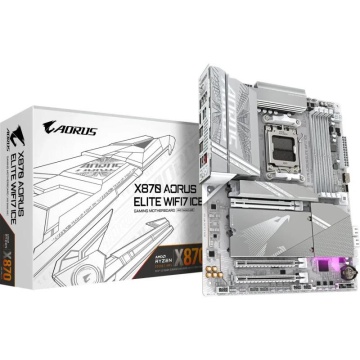

• Placa de Baza GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5 - Img 1
  • Placa de Baza GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5 - Img 2
  • Placa de Baza GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5 - Img 3
  • Placa de Baza GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5 - Img 4
  • Placa de Baza GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5 - Img 5
  • Placa de Baza GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5 - Img 6
  • Placa de Baza GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5 - Img 7
  • Placa de Baza GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5 - Img 8
  • Placa de Baza GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5 - Img 9
  • Placa de Baza GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5 - Img 10

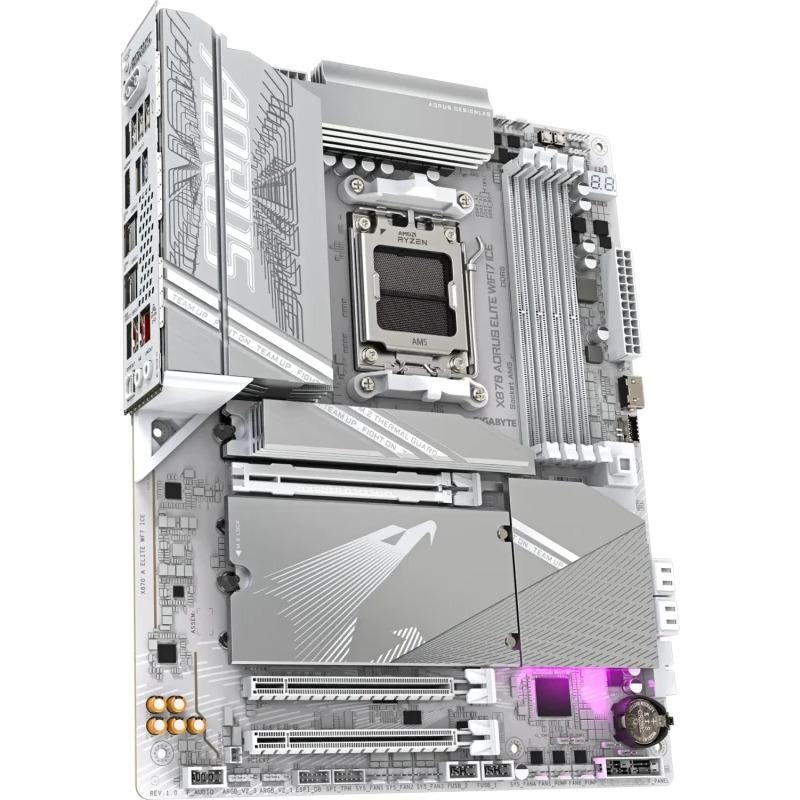

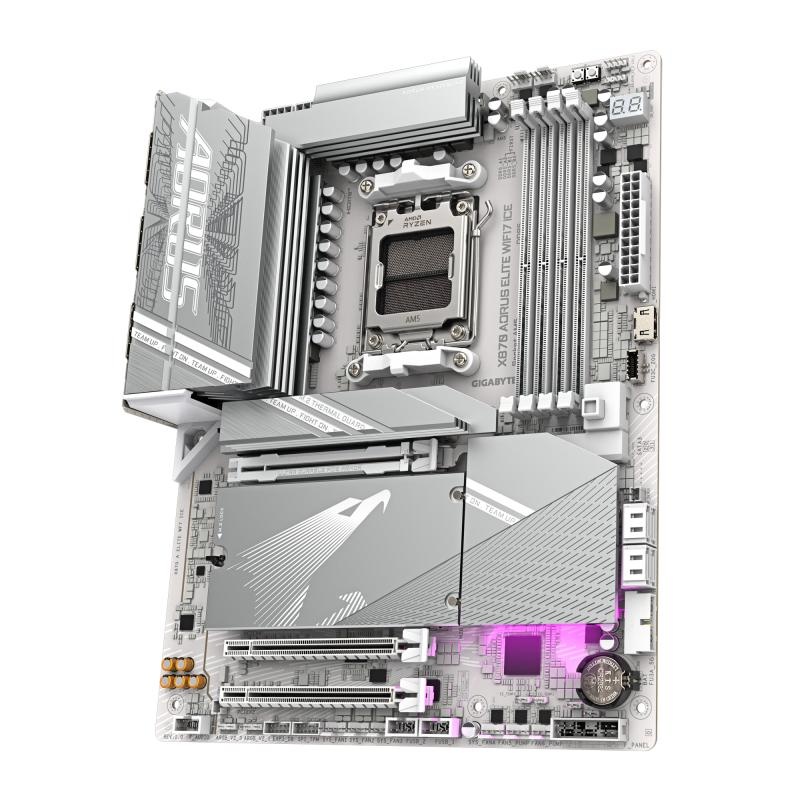

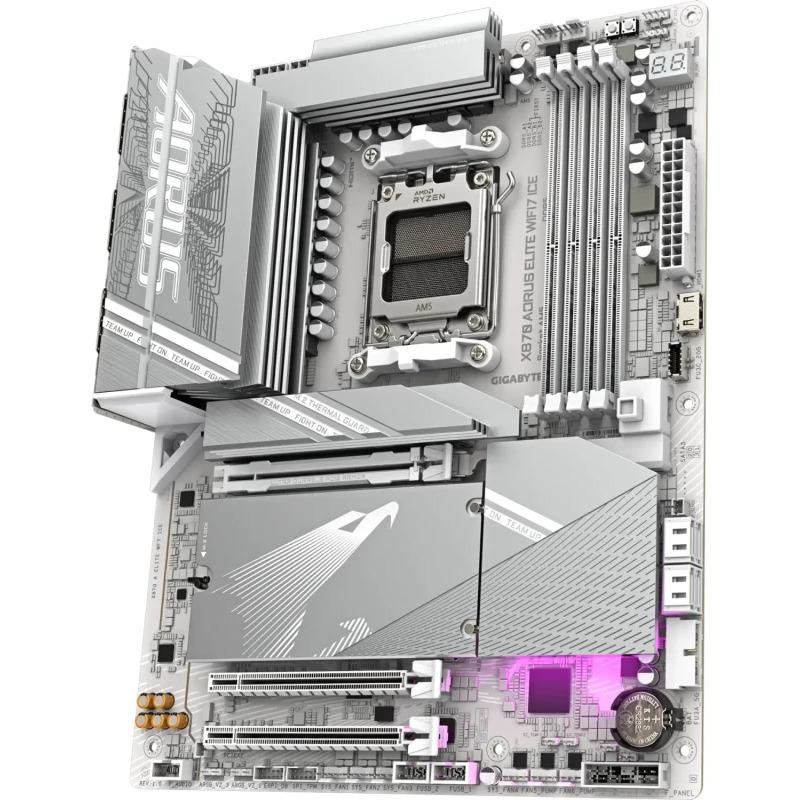

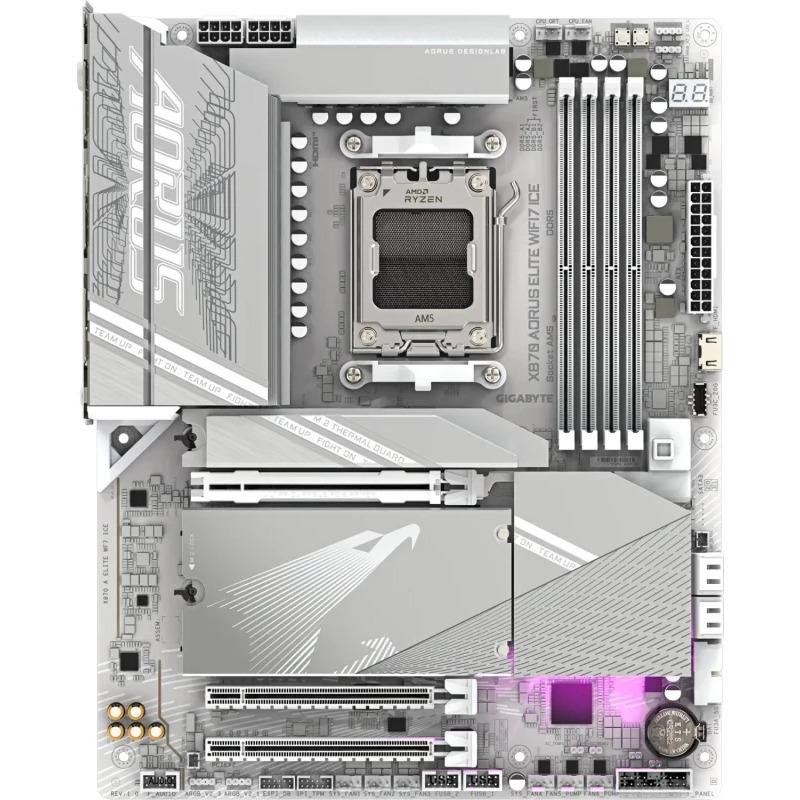

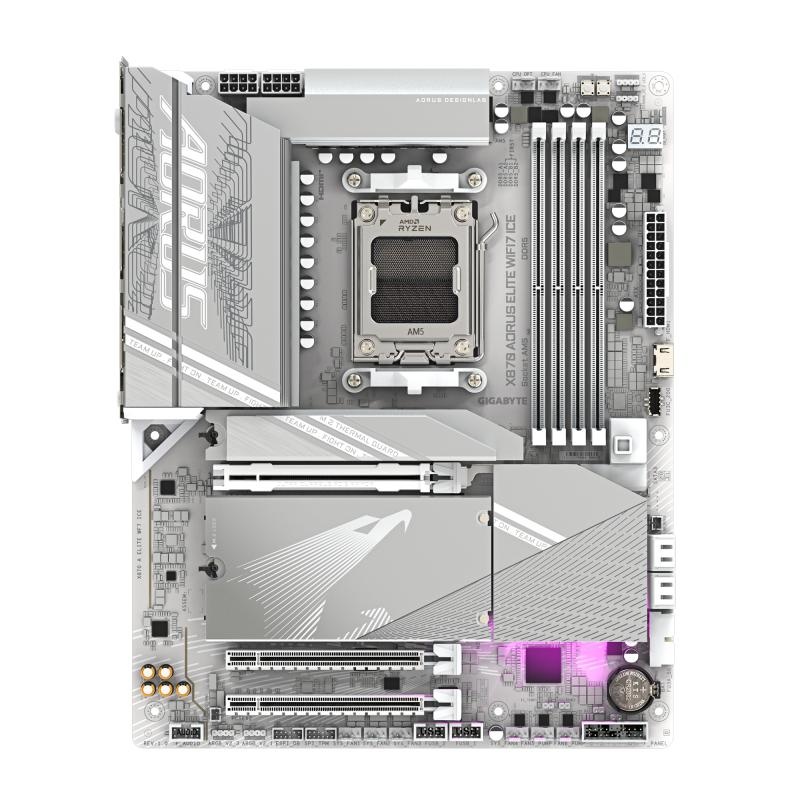

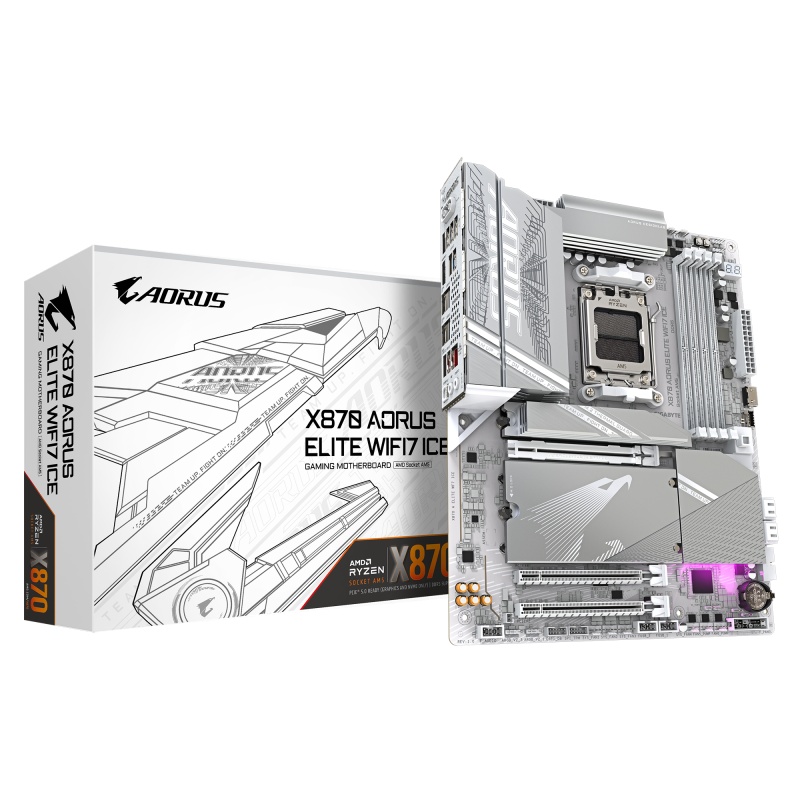

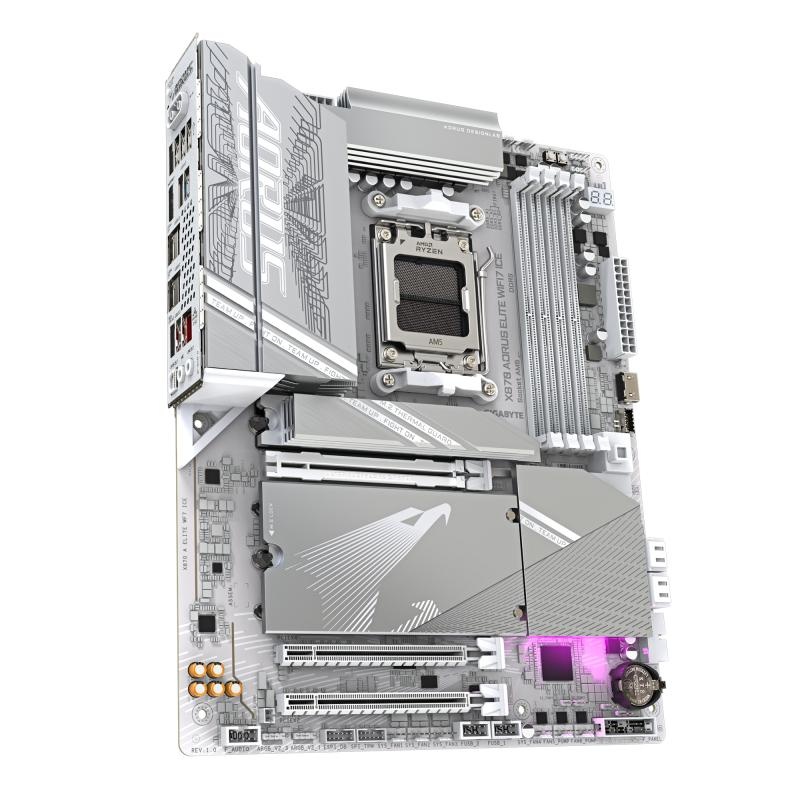

Placa de Baza GIGABYTE X870 AORUS ELITE WIFI7 ICE AM5

GIGABYTE
RON 1,803.74 (VAT included)
RON 1,490.70 (VAT excluded)
Costurile de livrare vor apărea in cos
GIGABYTE
Repayment of installments: fast and easy
RON 59.51 Monthly payment
Installment calculator Leanpay
Buy now, pay later from RON 40.36 / Month Details
Product code - SKU X870 A ELITE WF7 ICE
This product is no longer available in our store.
Add to Favorites

Details

SKU
X870 A ELITE WF7 ICE
Categories
Placi de baza
Brand
GIGABYTE
Product colour
White
BLUETOOTH
Yes
Wi-Fi
Yes
Bluetooth version
5.4
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Height
35 mm
Country of origin
China
On-board graphics card
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI ports quantity
1
Ethernet LAN
Yes
HDMI version
2.1
WLAN controller model
MediaTek MT7925
Processor manufacturer
AMD
DisplayPort version
1.4
Memory channels
Dual-channel
On-board graphics card model
AMD Radeon Graphics
USB4 Gen 3x2 ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Battery type
CR2032
Headphone outputs
1
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Microphone in
Yes
HDCP
Yes
Component for
PC
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
PCI Express x16 (Gen 5.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
1st M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
2nd M.2 highest PCI Express generation
5.0
Motherboard chipset family
AMD
Windows operating systems supported
Windows 11 x64
Audio output channels
7.1 channels
Number of SATA III connectors
4
Number of SATA II connectors
0
Number of SATA connectors
0
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Total number of SATA connectors
4
ECC сompatibility
Non-ECC
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
S/PDIF out port
Yes
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
RAID support
Yes
RAID levels
0, 1, 10
Number of HDDs supported
4
PCI
0
Serial-or-Paralel
No/No
USB3
4-8
Onboard-CPU
No
MB-Format
ATX
RAM-Slots
4
MB-Socket
AM5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 2.0 connectors
2
Front panel audio connector
Yes
USB 2.0 ports quantity
4
Warranty period
3 year(s)
DirectX version
12.0
Parallel processing technology support
Not supported
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Clear CMOS jumper
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Discrete graphics support
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
12V power connector
Yes
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
Unbuffered memory
Yes
Screws included
Yes
Antenna included
Yes
WiFi-AP antenna jack
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Depth
244 mm
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
USB 3.2 Gen 2x2 Type-C ports quantity
0
Maximum resolution
4096 x 2160 pixels
Maximum internal memory per slot
64 GB
Ethernet interface type
2.5 Gigabit Ethernet
1st M.2 largest key size
25110
2nd M.2 largest key size
22110
Motherboard form factor
ATX
USB 3.2 Gen 2x2 connectors
1
Number of CPU fan connectors
2
LAN controller
Realtek RTL8125
PCI-Ex1
0
Supported memory clock speed (max)
8200 MHz
Number of RGB LED pin headers
4
Package width
335 mm
Package depth
270 mm
Package height
80 mm
Width
305 mm
PCI-Ex16
3
Number of M.2 (M) slots
4
3rd M.2 highest PCI Express generation
5.0
4th M.2 largest key size
22110
Number of EPS power connectors (8-pin)
2
Number of storage drives supported
8
DisplayPorts quantity
0
Clear CMOS button
Yes
Number of water pump connectors
3
Number of chassis fan connectors
6
Maximum internal memory supported by processor
256 GB
Audio Chip
Realtek ALC1220
Supported storage drive interfaces
M.2
PCI Express x1 (Gen 3.x) slots
0
PCI Express x1 (Gen 4.x) slots
0
PCI Express x4 (Gen 4.x) slots
0
PCI Express x8 (Gen 3.x) slots
0
PCI Express x8 (Gen 4.x) slots
0
PCI Express x8 (Gen 5.x) slots
0
Weight
2.4 kg
PCI Express x4 (Gen 3.x) slots
0
Package weight
2.74 kg
PS/2 ports quantity
0
Motherboard chipset
AMD X870
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
PC health monitoring
Fan, Noise, Temperature, Voltage, Water cooling
Number of displays supported
4
USB4 Gen 2x2 ports quantity
0
