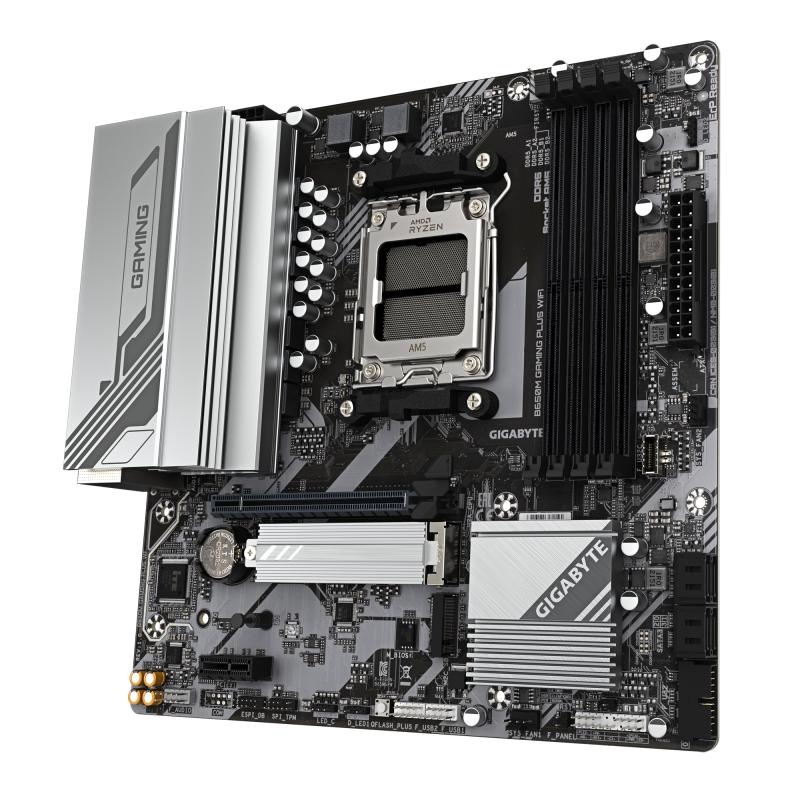

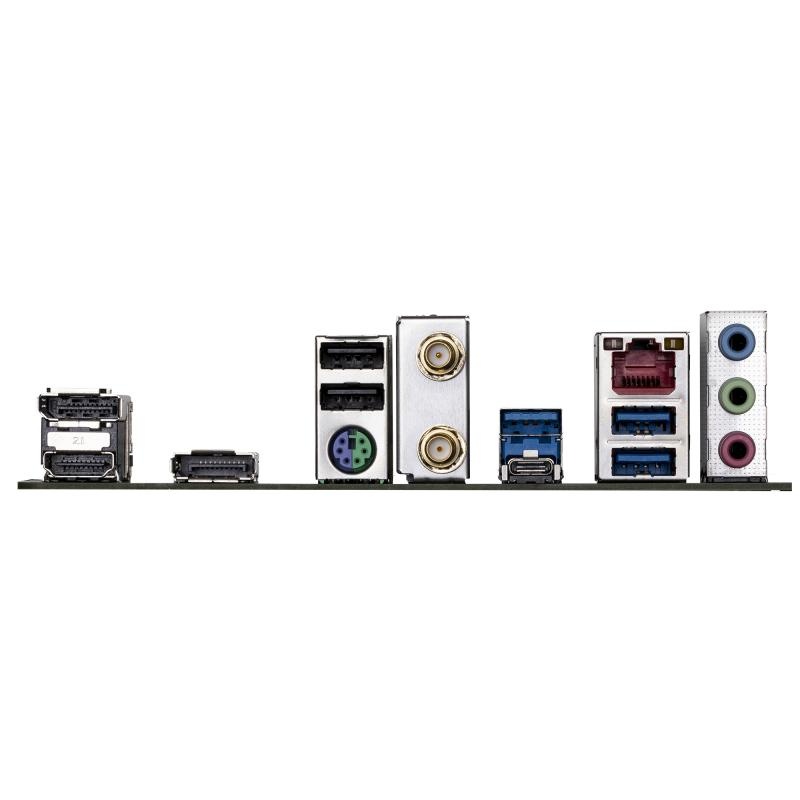

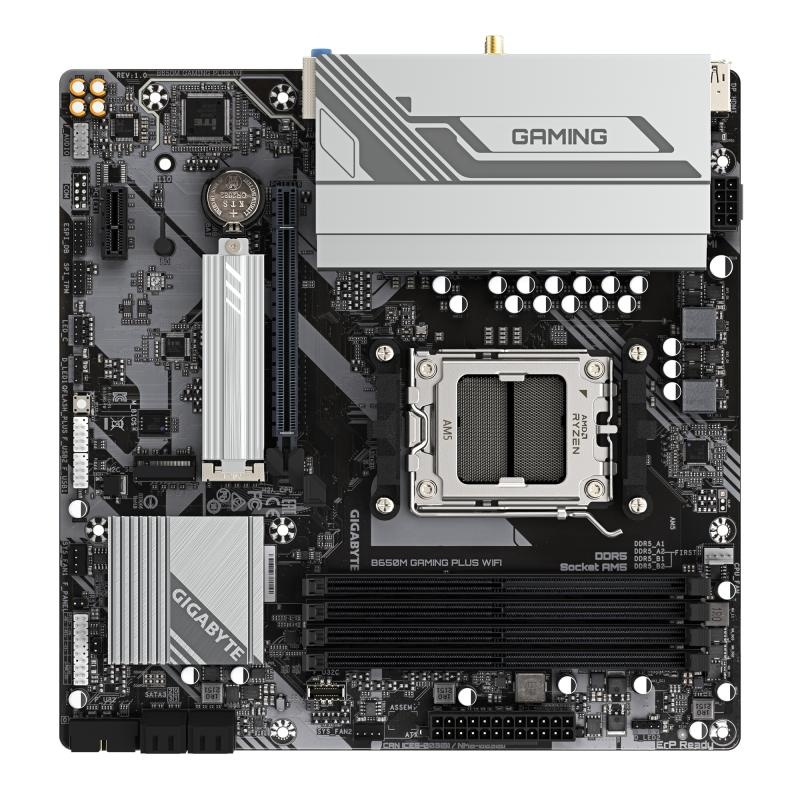

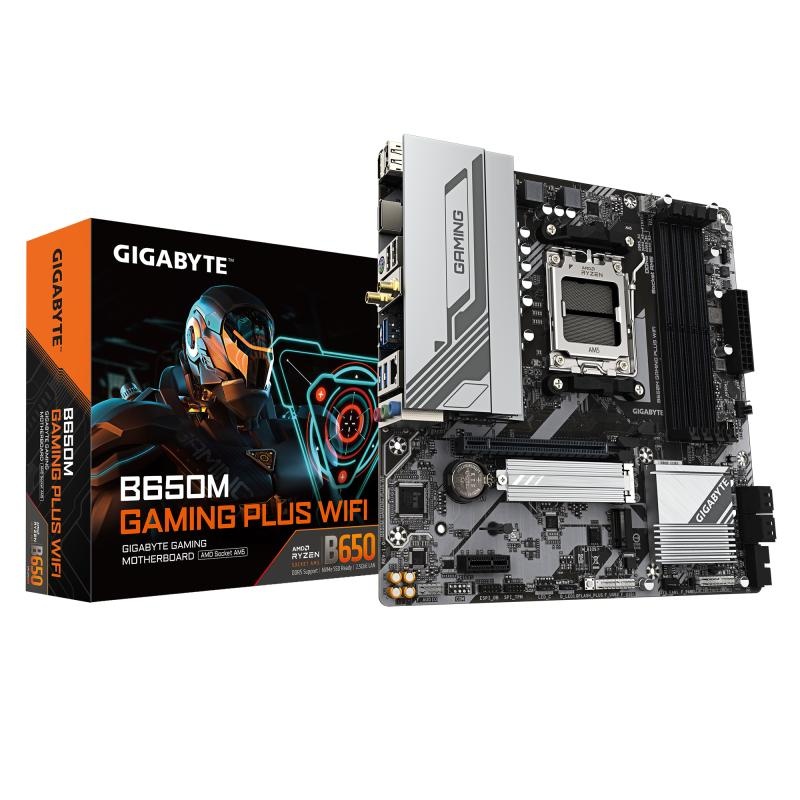

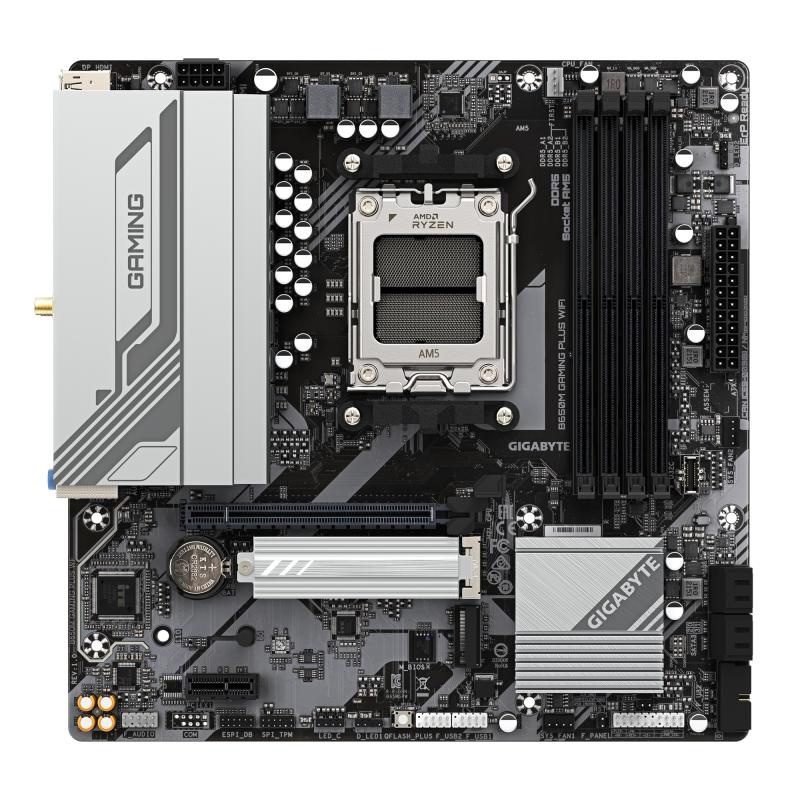

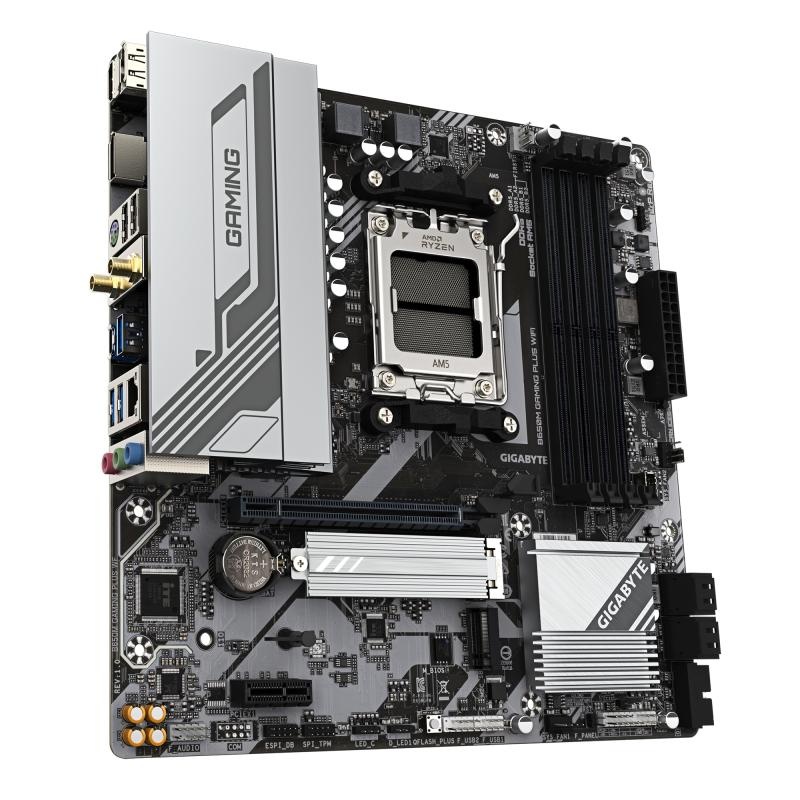

Placa de Baza GIGABYTE B650M GAMING PLUS WIFI AM5, 4x DDR5, 2x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

GIGABYTE
RON 864.47 (VAT included)
RON 714.44 (VAT excluded)
Costurile de livrare vor apărea in cos
GIGABYTE
Repayment of installments: fast and easy
RON 28.52 Monthly payment
Installment calculator Leanpay
Buy now, pay later from RON 20.17 / Month Details
Stock 3
Product code - SKU B650M GAMING PLUS WF
Add to Favorites

Details

SKU
B650M GAMING PLUS WF
Categories
Placi de baza
Brand
GIGABYTE
BLUETOOTH
Yes
Bluetooth version
5.3
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Height
35 mm
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
HDMI version
2.1
Processor manufacturer
AMD
DisplayPort version
1.4
Memory channels
Dual-channel
USB 2.0 ports quantity
2
Battery type
CR2032
Headphone outputs
1
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Microphone in
Yes
HDCP
Yes
DisplayPorts quantity
2
Component for
PC
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
PCI Express x16 (Gen 4.x) slots
1
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Number of SATA III connectors
4
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
ECC сompatibility
Non-ECC
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
RAID support
Yes
RAID levels
0, 1, 10
Number of HDDs supported
4
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Audio Chip
Realtek ALC897
Motherboard form factor
micro ATX
USB 2.0 connectors
2
Front panel audio connector
Yes
Number of chassis fan connectors
2
PS/2 ports quantity
1
Warranty period
3 year(s)
DirectX version
12.0
Parallel processing technology support
Not supported
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Clear CMOS jumper
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
PC health monitoring
Fan, Temperature, Voltage
Power source type
ATX
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of CPU fan connectors
1
Number of EPS power connectors (8-pin)
1
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
Unbuffered memory
Yes
Screws included
Yes
Antenna included
Yes
Package width
270 mm
Package height
68 mm
Package depth
268 mm
WiFi-AP antenna jack
2
Line-in
Yes
Depth
244 mm
Width
244 mm
Product colour
Dark brown
Cooling type
Passive
PCI Express x1 (Gen 3.x) slots
1
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
Windows operating systems supported
Windows 10 x64, Windows 11 x64
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
Number of storage drives supported
6
1st M.2 largest key size
2580
Motherboard chipset
AMD B650
Maximum resolution
4096 x 2160 pixels
Number of RGB LED pin headers
3
Maximum internal memory per slot
64 GB
Ethernet interface type
2.5 Gigabit Ethernet
WLAN controller model
Realtek RTL8852CE
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
Supported memory clock speed (max)
8000 MHz
LAN controller
Realtek RTL8125
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Supported memory clock speeds
8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz
Weight
1.44 kg
Package weight
1.53 kg
