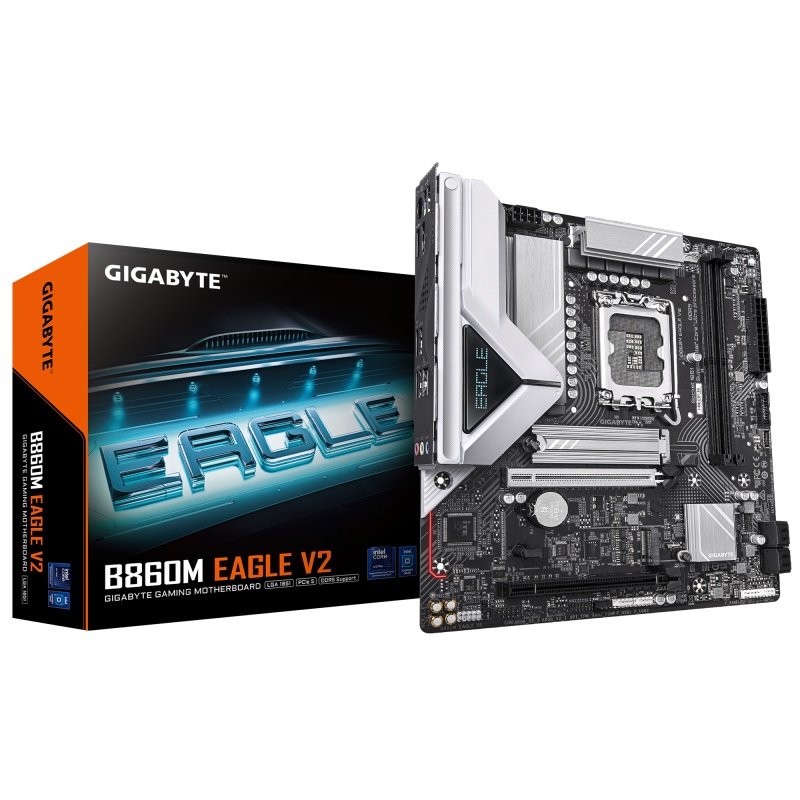

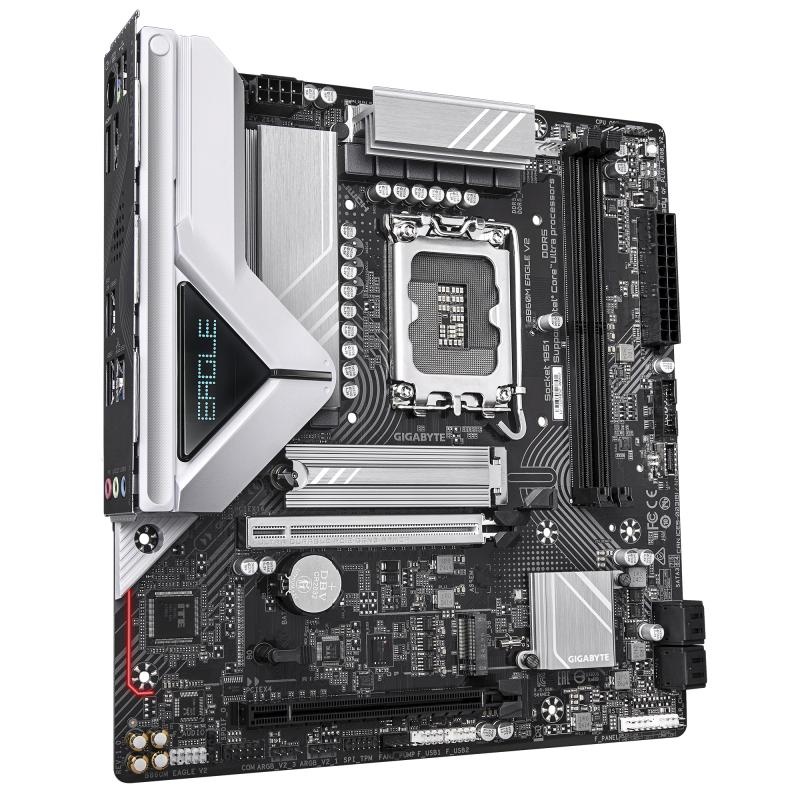

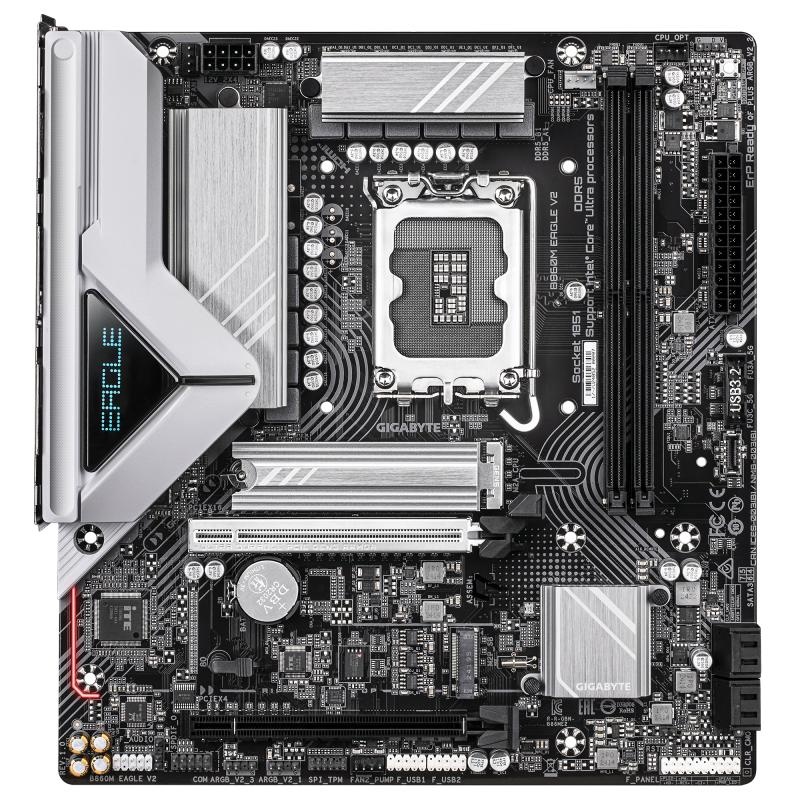

Placa de Baza GIGABYTE B860M EAGLE V2 LGA1851, 2x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, mATX

GIGABYTE
811,71 RON (TVA inclus)
670,84 RON (fara TVA)
Costurile de livrare vor apărea in cos
GIGABYTE
Plateste in rate
26,87 RON Rata lunara
Calculator de rate Leanpay
Cumpara acum, plateste mai tarziu de la 19,04 RON / Luna Detalii aici
Stoc 2
Cod produs - SKU B860M EAGLE V2
Adauga la Favorite

Detalii

SKU
B860M EAGLE V2
Categorii
Placi de baza
Brand
GIGABYTE
Height
35 mm
HDMI
Da
Processor manufacturer
Intel
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Thunderbolt
Nu
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
HDMI version
2.1
DisplayPorts quantity
1
Memory channels
Dual-channel
Wi-Fi
No
Battery type
CR2032
Headphone outputs
1
Products per shipping (inner) case
1 pc(s)
Batteries included
Yes
Microphone in
Yes
USB 2.0 ports quantity
3
HDCP
Yes
Component for
PC
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
PCI Express x16 (Gen 5.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Audio output channels
7.1 channels
Number of SATA III connectors
4
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
DVI-D ports quantity
0
VGA (D-Sub) ports quantity
0
Supported storage drive types
HDD & SSD
RAID support
Yes
Number of HDDs supported
4
PCI
0
Serial-or-Paralel
No/No
USB3
4-8
Onboard-CPU
No
PCI-Ex16
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Audio Chip
Realtek ALC897
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
USB 2.0 connectors
2
Front panel audio connector
Yes
Number of chassis fan connectors
2
Number of memory slots
2
PS/2 ports quantity
1
MB-Format
micro-ATX
RAM-Slots
2
Warranty period
3 year(s)
DirectX version
12.0
Parallel processing technology support
Not supported
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Clear CMOS jumper
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Power source type
ATX
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of EPS power connectors (8-pin)
1
Serial port headers
1
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
Unbuffered memory
Yes
Maximum internal memory
128 GB
ECC сompatibility
ECC & Non-ECC
Screws included
Yes
Line-in
Yes
Width
244 mm
Product colour
Dark brown
Cooling type
Passive
Number of M.2 (M) slots
2
Windows operating systems supported
Windows 10 x64, Windows 11 x64
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
Package height
54 mm
Package width
265 mm
Package depth
265 mm
Number of storage drives supported
6
Maximum resolution
4096 x 2160 pixels
Number of RGB LED pin headers
3
Maximum internal memory per slot
64 GB
Ethernet interface type
2.5 Gigabit Ethernet
Depth
225 mm
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Number of CPU fan connectors
2
Number of water pump connectors
2
LAN controller
Realtek RTL8125
PCI-Ex1
0
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID levels
0, 1, 5, 10
Weight
1.01 kg
S/PDIF out connector
Yes
Compatible processor series
Intel Core Ultra (Series 2)
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
MB-Socket
LGA1851
DisplayPort version
2.1
Motherboard chipset
Intel B860
Supported memory clock speed (max)
9066 MHz
Supported memory clock speeds
9066,8800,8600,8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,5600 MHz
BLUETOOTH
Nu
Package weight
1.2 kg
Gaming
Nu
Format
Micro-ATX (mATX)
Numar sloturi memorie
2
Chipset audio integrat
Realtek
Soclu Procesor
Socket 1851
Tip Memorie
DDR5
Tip slot interfata grafica
PCIe 5.0 x16
Sloturi M.2
2
Model Chipset
B860
